Quickstart with Xilinx KC705

OpenFC - an Open FPGA Cluster Toolkit

Prerequisites†

• PC to run Vivado design suite (faster is better, Linux or Windows)
• PC as an FPGA host (Linux x86_64) with a KC705 card

Step 1: Setup and test the base system†

Checking out the source tree†

The source tree is available from our subversion repository:

% svn co https://lut.eee.u-ryukyu.ac.jp/svn/openfc/trunk src

Inside the source tree, there are:

• boards/ : board dependent stuff
• core/ : common stuff (router and misc utilities)
• host/ : host API and software examples
• icap/ : ICAP partial reconfiguration stuff (currently only for Xilinx FPGAs)
• pcie/ : PCI Express DMAC (RIFFA, more DMACs will come soon)
• serdes/ : Serial transceiver stuff (Xilinx Aurora: intel support is planned)
• tcl/ : Tcl scripts to configure projects in FPGA design tools

Hardware setup†

To Prepare FPGA bitstream:

1. Launch Vivado design suite. 2018.3 or later is required.
2. Create a new project. The setup script will override the device selection, so you don't have to choose the correct device part # at this point.
3. Choose Tools -> Run Tcl Script, then open src/tcl/kc705.tcl. Tcl script loads everything you need

   • If your Vivado is newer than 2018.3, open Report -> Report IP status, then check all IPs and do "Upgrade Selected" or you'll get errors on the implementation process.
4. Click "Generate Bitstream," then you'll get a configuration bitstream for the KC705 card.
5. Plug the KC705 board into the host's PCIe slot, power the host&card up, then write bitstream. Using different PCs for Vivado and FPGA host is strongly recommended because we sometimes need to reboot the FPGA host.

This design contains a stream PE that just passes the input stream through.

Driver setup†

You'll need RIFFA driver and libriffa.so (user API library).

% cd src/host/riffa-driver
% make
% sudo make install

And if you want to enable all users to access the FPGA without root privilege, write /etc/udev/rules.d/99-riffa.rules:

KERNEL=="riffa", MODE="777", GROUP="root"

After you reboot the FPGA host, you'll find /dev/riffa.

Run test program†

A stream loopback example is found in src/host .

% cd src/host
% gcc simple-loopback.c fpga-tools-riffa.c fpga-tools.c -lpthread -lriffa
% ./a.out
FDs: o1 xx, o2 xx, i xx
PCIe loopback
done

If any error is found in the returning stream, the values will be dumped on the screen.

Step 2: Test another Stream PE†

In this step, replace the default "pass" PE that just passes the input stream to its output by "intadd" PE that performs integer vector addition.

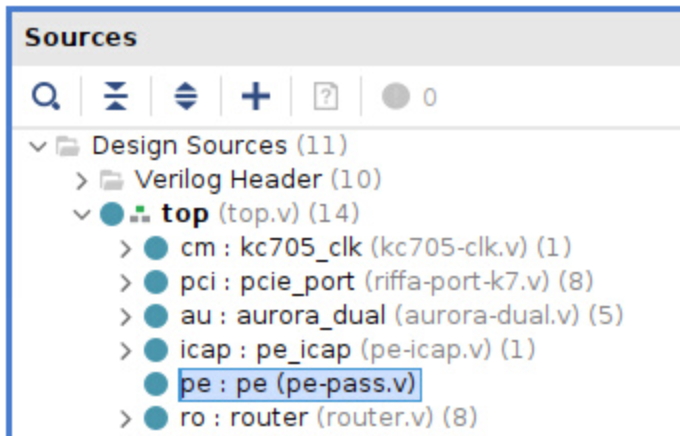

1. First, find "pe-pass.v" in the module hierarchy.

   • Both instance and module names are "pe"
   • Right-click and remove the file from project, or just choose "disable file" if you still want keep the file in the project.
2. Add "pe-intadd.v" to the Vivado project.
   • You can find pe-intadd.v in "pe-base" directory of the OpenFC source tree.
3. Generate bitstream, program your KC705 card, then reboot the FPGA host.
4. Compile and run the test program
   • Test program is src/host/simple-intadd.c

     % gcc simple-intadd.c fpga-tools-riffa.c fpga-tools.c -lpthread -lriffa
     % ./a.out
     FDs: o1 xx, o2 xx, i xx
     10000 + 0 = 10000
     10001 + 1 = 10001
     10002 + 2 = 10002
     ...
